Heavy Copper PCB

Features of Heavy Copper PCB

1.  High-current capacity
2.  Excellent heat-loss capability
3.  High credible reliability (resist high voltage, high temperature and high humidity)
4.  Excellent electro conductibility
5.  High reliability of Inner layer copper finger

Other advantage of Heavy Copper PCB

1.  Heavy Copper-plated through-holes enhance reliability
2.  Partial automation for excellent repeatability
3.  PowerLink, combining small signal and Heavy Copper traces on one PCB, reduces external connections
     and increases reliability
4.  Combined sense, control and power traces on the same PCB reduce overall package size and weight
5.  The high copper layer allows reliable heat diversion and provides additional safety for high current
     applications as well as heat sensitive components

Heavy Copper PCB are used, but no limisted to following industries

1. Welding Equipment
2. Solar Panel Manufacturers
3. Power Supplies
4. Heat dissipation
5. Automotive
6. Electrical Power Distribution
7. Power Converters

Why Choose PCBSourcing as Heavy Copper PCB supplier

 1.  Quotation for Heavy Copper PCB within 24 hours, urgent offer within 2 hours;
 2.  Rich experiences in Heavy Copper PCB, proffesional suggestions from design stage in order to avoid
      any impracticable design;
 3.  Short Lead time

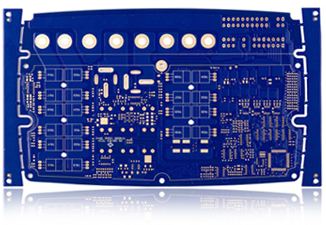

                             6 Layers Heavy Copper                                                                           8 Layers Heavy Copper
                                FR4 2.20MM 4/6OZ                                                                                   FR4 2.40MM 4/4OZ
                                  Immersion Gold                                                                                        Immersion Gold
                                Green Solder  Mask                                                                                   Blue Solder Mask
                                         15/12mil                                                                                                      10/13mil
