Arlon PCB

Arlon material has the highest glass transition temperature(Tg250C)，also higher Pyrolysis temperature (Td 380C).

Arlon's materials are used in a variety of applications, which have typically require laminates with specialized electrical, thermal,
mechanical, or other performance characteristic that exceed those of traditional standard FR-4 materials.

These application using Arlon material include but not limit to wireless communications infrastructure, military and commercial
avionics, and semiconductor test and measurement equipment

Our partner have great experience in producing arlon circuits.

Please visit Special Material PCB to check our Arlon`s PCB Capability List.

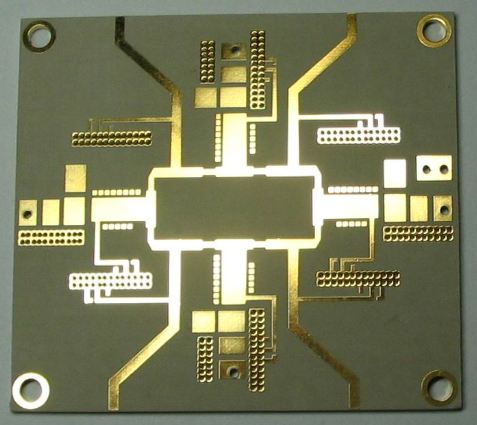

2 Layer Printed Circuit Board
Arlon Material 1.60mm thickness
1oz finish Copper
Immersion Gold surface finish
Min Track/Space: 6mil
Min Hole: 0.30mm
Matt Black Solder Mask

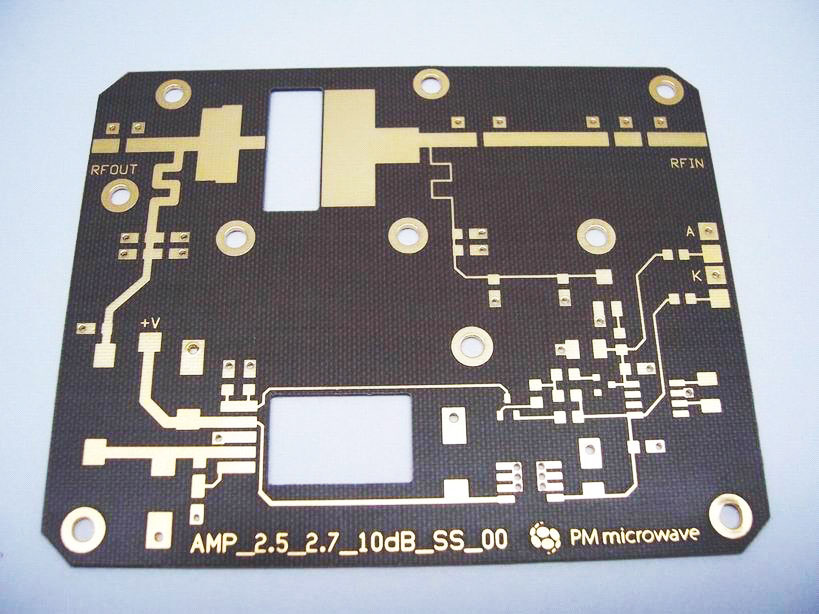

Multilayer PCBS (4 Layer)
Arlon material 1.50mm thickness
1OZ start copper thickness
Immersion Gold surface treatment
Min Line/Width: 0.3mm
Min Hole: 0.3mm
