Gold Finger PCB

Gold Fingeris agold-platedterminal of a card-edge connector, usually, fingers are done by flash gold (hard gold) and the gold
thickness is requested to be from 3u`` to 50u`` because fingers are mainly used for pluging for many times.

We have great advantage in gold finger pcbs production, and now, the thicknest gold we can do is 50u.

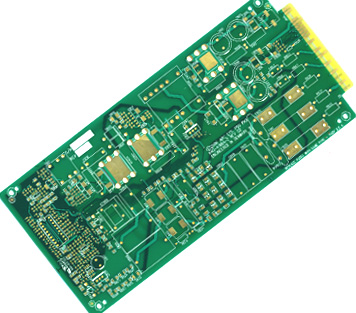

Product type: 4 layers PCB
Board thickness: 1.60±0.15mm
Copper thickness: 2OZ out layer 1OZ innner Layer
Minimum hole size: 0.50mm
Surface finish: ENIG+gold finger
Minimum line width/space: 0.125/0.125mm
Gold thickness on gold finger: 20u``

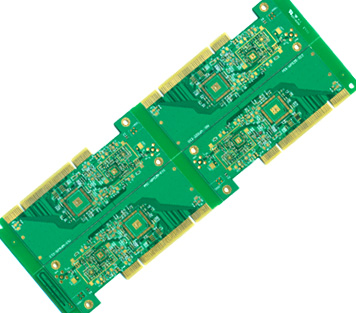

Product type: 6 layers gold finger PCB
Board thickness: 1.60±0.15mm
Copper thickness: 2OZ out layer 1OZ innner Layer
Minimum hole size: 0.50mm
Surface finish: ENIG+gold finger
Minimum line width/space: 0.15/0.13mm
Gold thickness on gold finger: 30u``
