Instrumentation PCB

Instrumentation is defined as the art and science of measurement and control of process variables within a production,
or manufacturing area.

An instrument is a device that measures and/or regulates physical quantity/process variables such as flow, temperature,level,
or pressure.

Instrumentation equipment is not only seen in industry, but also in daily life, like house hold, automotive,laboratory
instrumentation, measurement (electric energy measuring, Automatic Meter Reading system,Frequency,Current,Voltage,
Capacitance,Resistivity)

As one of professional China PCB Supplier,PCBSourcing have great experience in supplying PCBS to instrumentation equipment manufacturers.

Please visit conventional PCB to check our capability list for instrumentation pcbs.

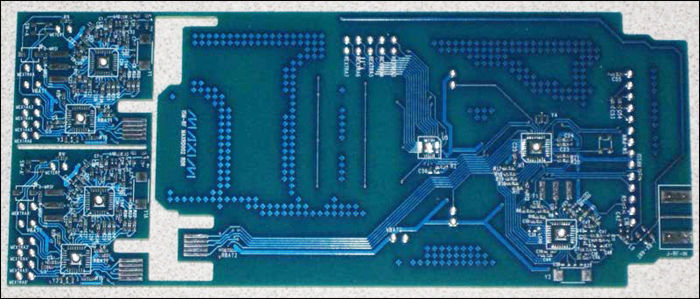

Layer Printed Circuit Board
1.0mm Board Thickness
2.0 Finsih Copper thickness
Lead Free Hasl Finish
Min Track/Space  4mil/4mil
Min Mechanical Drill:  0.20mm
Designed for Instrumentation Device
Brand: China PCB Manufacturing 6 Layer Printed Circuit Board
1.6mm Board Thickness
1.0 Finsih Copper thickness
L/F Hasl Surface Treatment
Min Track/Space  4mil/4mil
Min Mechanical Drill:  0.25mm
Designed for AMR System
Brand: China PCB Fabrication
