Immersion Gold PCB

Immersion Gold,also called ENIG, has been growing as one of the best finishing methods for printed circuit boards. ENIG
is a costlier finish, but offers the best characteristics for pcbs.

Immersion gold chemistries offer many strengths like excellent surface planarity (particularly helpful for PCB's with large BGA
packages) coplanarity, excellent wettability, long shelf-life and surface oxidation.

ENIG doesn't require frequent dummy plating, excellent re-flow cycles, and gives level plating around the shoulders of pads and
circuits. Immersiong gold finish also provides both good adhesion as well as providing outstanding electrical testability

Compared with flash gold Immersion gold finish is cheaper because the thickness of gold. However, with good solderability.

Please visit Conventional PCB to check our capability list

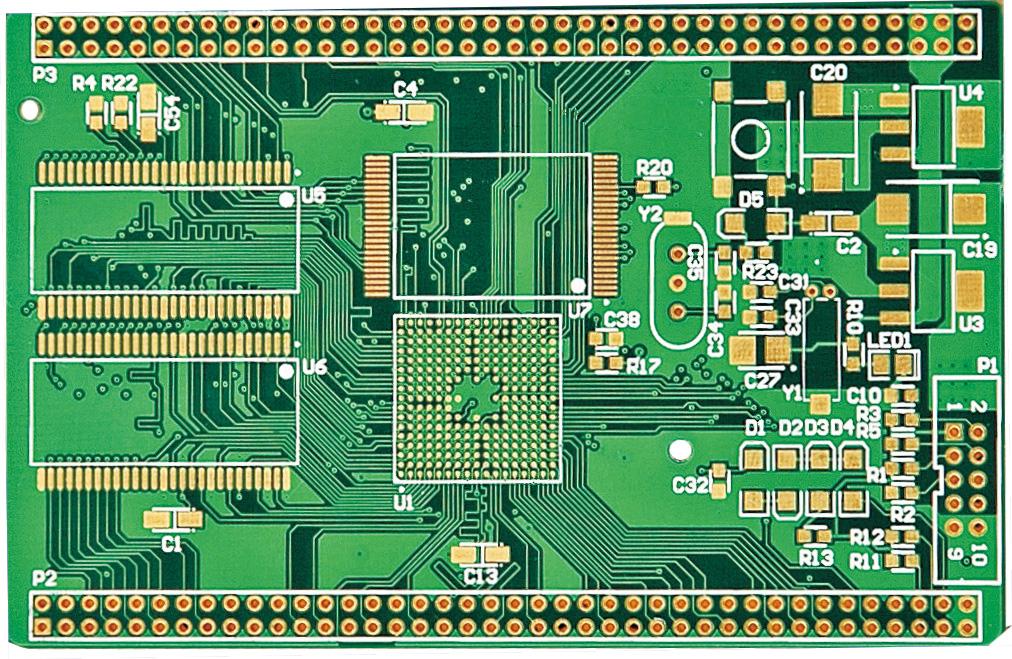

4 Layer Printed Circuit Board
FR4 2.00mm board thickness
2OZ copper thickness
Immersion Gold surface finish
Min hole size: 0.25mm
Min track/space: 4mil
BGA

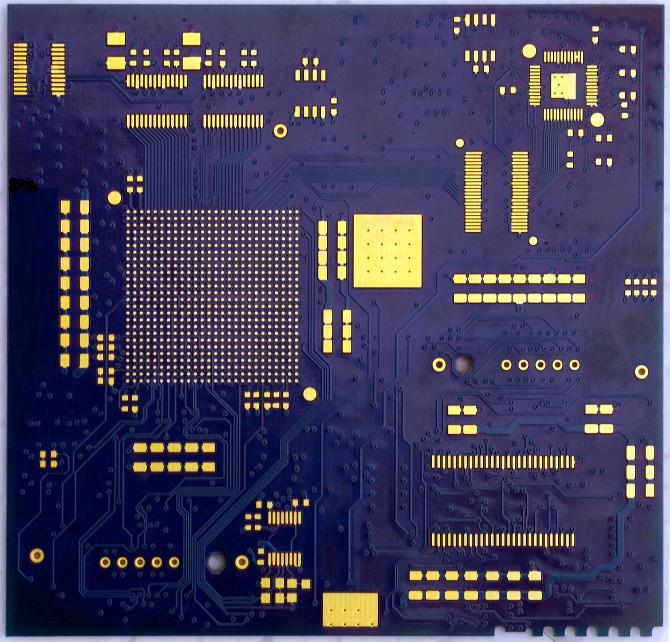

2 Layer PCB
FR4 1.60MM Thickness
2OZ base copper
Immersion Gold Surface Treatment
Min line/width: 5mil
Min Hole: 0.22mm BGA
