High TG PCB

Tg is Glass Transition Temperature. As flammability of board is V-0 (UL 94-V0), so if the temperature exceeds designated
tg value, the board will changed from glassy state to rubbery state and then the function of board will be affected.

High TG materials have better mechanical strength, dimension stability, adhesiveness, moisture absorption, thermal decomposition,
and thermal expansion than normal TG pcbs.

High Tg material (TG170) is also popular in LED lighitng industry, because heat dissipation of LED is higher than normal electronic
components, however same structure of FR4 board is much cheaper than that of metral core pcbs, like aluminum board.

Please visit High TG to check our capability List for high tg product.

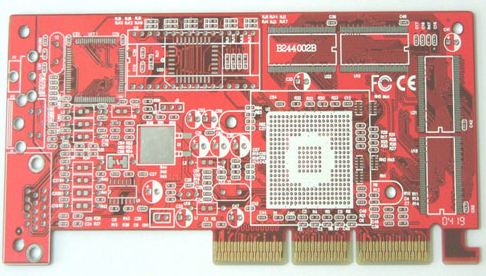

2 Sided Printed Circuit Board
FR4 1.2mm board thickness
High TG (TG 170)
1OZ Copper base
Lead Free Hasl Finish
Min Track/Space: 5mil
Min Hole Size: 3mm
BGA
Red Solder Mask

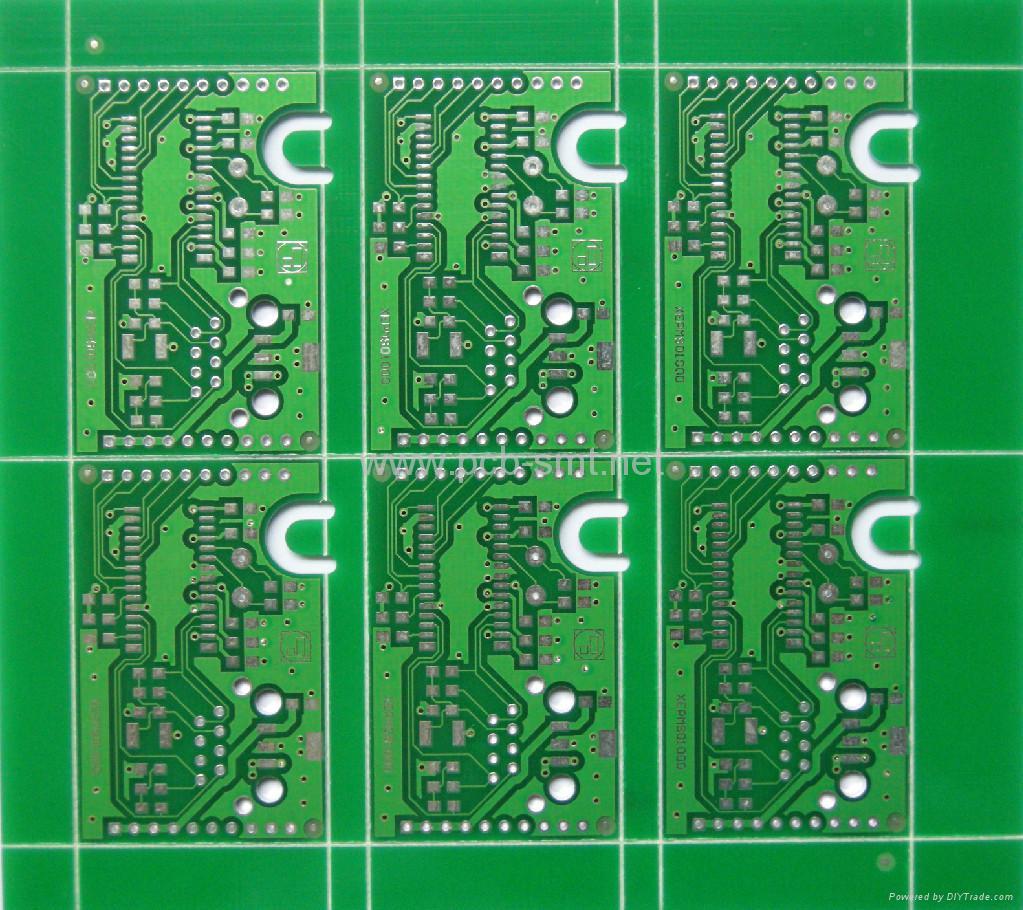

Multilayer PCBS-8 Layers
FR4 1.6mm board thickness
High TG (TG 180)
1OZ Copper finish
Lead Free Hasl Finish
Min Track/Space: 7mil
Min Hole Size: 3mm
