Cu Based PCB

Cu based PCB has characteristics of plate surface smooth, dimensional stability, high strength, easy processing; because of small
thermal resistance, cu based PCB are widely used in industrial power equipment, automotive ignition, regulator, speakers, power
supply module, as well as other cooling electronic equipment.

Cu based PCB is the most expensive one in MCPCB(metal core printed circuit board), with much better cooling function
than Iron or aluminium based PCB.

The treatment of Cu based printed circuit board can be immersion gold,flash silver,hasl finish.OSP......

Please visit Metal Core PCB to check our capabilility list for copper based PCB.

Single Sided Printed Circuit Board
Cu Based Material 1.60mm
1OZ Finish Copper Thickness
Immersion Gold Surface Treatment
Used for LED products
Outline: Routing

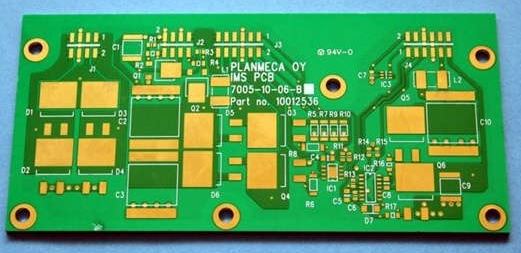

2 Layer pcb
Cu base material 1.60mm thickness
1OZ Start Copper
Immersion Gold Surface Treatment
Min Line/Width: 8mil
Min Hole Size: 0.31mm
Green Solder Mask
