Flexible Printed Circuit Board is a printed circuit made of a flexible insulating substrate, with the advantages that rigid printed circuit
board do not have. For example, it can be freely bent, winding, folding, in accordance with the layout of space requirements of any
arrangements to achieve the integration of components assembly and wires and move freely in 3D space and telescopic. FPC can
be greatly reduced the volume of electronic products for the needs of the development of electronic products to high-density,
miniaturization, high reliability and direction. Therefore, FPC has been widely applied in the field of aerospace, military, mobile
communications, portable computers, computer peripherals, PDAs, digital cameras and other products.
Please visit
Flex PCB to check our flexible pcb capability list
-

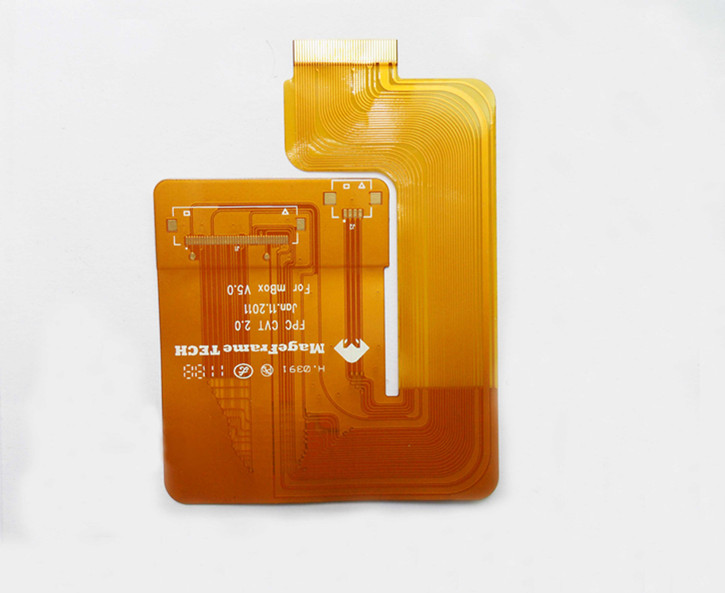

Number of layer: single Sided Flexible PCB
-
Terminal contact: single copper double access
-
Copper foil: 1 oz finished thickness
-
Base layer and cover layer: 1 mil PI and 25 um adhesive
-
Surface treatment: electrolytic nickel-gold plating
-
RoHS directive-compliant
-
Min Hole Diameter: 0.30mm
-
Min Track/Space: 5/5mil

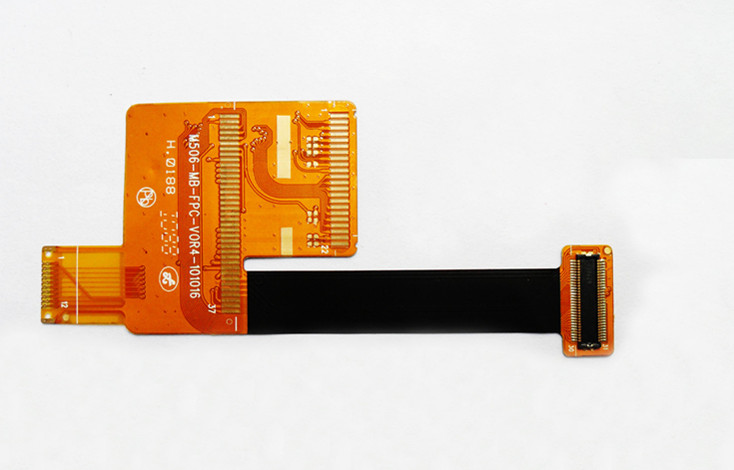

Number of layer: single Sided Flexible Printed Circuit Board
Copper foil: 1 oz finished thickness
Base layer and cover layer: 1 mil PI and 25 um adhesive
Surface treatment: electrolytic nickel-gold plating
Gold Fingers Connector
Min Hole Diameter: 0.30mm
Min Track/Space: 5/5mil
RoHS directive-compliant
Flexible PCB
